1 Introduction
H264 WebCam
H264 WebCam is
a 32-channel h264 remote video surveillance software for Windows. It can
capture images at up to 30 fps from IP camera, USB camera, Capture card, TV
board, and PTZ control and preset many IP cameras! It can help you to create
web page for broadcasting live audio and video stream on Internet. This webcam software has an advanced
video motion detection algorithm along with various alert functions including
Email, FTP, and sound. It can encode your camera video to H264, XVID and Flash
multimedia stream, and this stream can be viewed by Flash player, Quicktime,
Realplayer, Windows Media Player, IE or Firefox browser on remote PC,
Macintosh, iPhone etc. This ip
camera software also has a unique H264 User Name mode to manage dynamic ip
address on the Internet, and can host Dyndns domain for you. High quality video
and audio effects with low bandwidth needs and recording file formats include
ASF, WMV, MP4, MOV, FLV, SWF or AVI. Manual recording is available, along with
scheduled recordings as well as motion-triggered recording. JPEG image
snapshots can be made from video images along with detailed log files.
Other features include secure Login with a valid user ID and
password required for network based access and it can automatically restore the
network connection if the network link is lost during a monitoring session.
This feature rich software combines a digital video recorder and digital video
server making it possible to be used as a stand-alone product or the centerpiece
for building a powerful surveillance network.
System requirements
H264WebCam
supports - Windows 98/Me, Windows 2000/2003/2008, Windows XP, Windows Vista and Windows 7 operating systems!
Equipment requirements are:
Equipment requirements are:
1000MHz Intel or AMD CPU
1GB Memory.
1GB Memory.
Additional
Software needed is the Microsoft DirectX9 which can be
downloaded and installed from www.microsoft.com
at no charge.
Video Encoding
H264WebCam can be configured to use the
following Video Encoding options - H264, H263, H261, XVID, MPEG4, MPEG2, MPEG1,
MJPEG, FLV, MSMPEG4, WMV3 etc. The
encoding bit-rate can also be set for each of the encoding options.
Audio
Encoding
H264WebCam can be configured to use various
Audio Encoding formats which include AAC, MP3, and WMA. The encoding bit-rate can be set to 32K,
24K, 16K or 8K.
Recording Format
H264WebCam can be configured to use various video recording formats
as well. Some of the supported formats are - AVI, MP4,
MOV, FLV, SWF, ASF and WMV.
Supported Device
You can visit : http://www.h264soft.com/supportdev.html
.
Recording File Location
The default directory -- TimHO_Rec is created in root of the every disk
partition! And can automatically switch to the next partition if this partition
is full. And you can enable every partition to record or not ! You can change this record directory name to others!
This software can record to hard disk, USB disk and network disk. And can
automatically delete the oldest record files when disk is full.
Help File and Log files
These files are stored in the install directory specified
during software installation process. Please refer to the installation process
for specific naming conventions and path information. If you run this program
and press "F1", you can open this help document!
These files are identified as - H264WebCam.chm, etc.
Email and Ftp of Images
When video motion is detected in channels, H264WebCam can be configured to automatically send Email alert pictures or FTP uploading alert pictures.
About the trial
H264WebCam have five versions:
1. Free Version Software.
This
version can be freely used except commercial purpose, but only have 4 channels,
and have
no
encode, record functions, and can not be connected from remote functions!
2. Standard Version Software.
This
version is not free software, you can try in 21 days for evaluation purposes.
It only has 4
channels,
and have no web server and stream media server functions!
3. Pro Version Software.
This
version is not free software, you can try in 21 days for evaluation purposes.
It only have 8
channels
can be used, and have no dyndns domain hosting function!
4. Deluxe Version Software.
This
version is not free software, you can try in 21 days for evaluation purposes.
It have 16
channels
can be used, only have no H264 User Name Mode(DDNS) function!
5. Exalted Version Software.
This
version is not free software, you can try in 21 days for evaluation purposes.
It have 32
channel
can be used, and have all function of H264WebCam!
You can view the detailed difference of these five version and
buy the optimum version from : http://www.h264soft.com .
Credit card ordering and quantity discounts are available in our
website. When payment is received you will be sent full version license serial
code of H264WebCam, and free to upgrade to new version continually!
Keywords
H264, WebCam, ip
camera, network camera, surveillance, motion detection, Domain, Xvid, Mpeg4,
DNS, DDNS, FTP, SMTP, video, encode, decode, communication, conference,
multimedia, mp3, record, DVR, monitor, client, server, H264 encode, H264 video,
video encoder, video chat, network, multicast, broadcast, audio encode,
compress, Email.
Contacting
Limitations to Support
We at h264soft.com are happy to help you with any technical problem or questions you may have with our software. However, we cannot help you with issues such as how to program or other issues not related directly to the workings of our software.
Contact Information
We can be contacted through the Timhillone Web site: http://www.h264soft.com
Direct Email enquiries can be sent to the Technical Support e-mail address: support@h264soft.com
If you have any
questions or comments please feel free to contact us! We look forward to
hearing from you!
2 Registration
Registration
Are you still a trial user? Order now,
it's simple!
What will happen after I place my order online?
The registration code will be sent to you automatically through your Email after your order is confirmed. You confirmation Email generally arrives with your registration code within 15 minutes after your order is completed.
How do I register H264WebCam?
Step 1 - Purchase the software
What will happen after I place my order online?
The registration code will be sent to you automatically through your Email after your order is confirmed. You confirmation Email generally arrives with your registration code within 15 minutes after your order is completed.
How do I register H264WebCam?
Step 1 - Purchase the software
First and foremost
you must purchase the software from our website and have received the
confirmation email.
Step 2 - Open the software
Each time you run H264WebCam, if it is
still a trial version, the application will pop-up a "Please Register
" dialog box, as shown below.
Step 3 - Copy and Paste the Registration Code
Open your email that
you received after your order was placed.
In this email is your Registration Code. COPY the registration code the
registering from the email by highlighting it with your mouse and pressing
CTRL+C (or right clicking the highlighted coed and selecting Paste from the
popup menu).
Now PASTE the
registration code into the input field (the box in the Please Register window)
by clicking in that field/box then press CTRL+V or right click in the field/box
and select Paste from the popup menu.
You should now see the registration code from your email in the Please
Register window.
Step 4 - Accept the Registration Code
Click the
"Register" button to accept the registration code and launch the
application - that's it!
If you encounter any
problems with your registration code please email Technical Support at support@h264soft.com.
3 User
Guide
Overview of the H264 WebCam
When you click the minimize button, in the
upper right corner of the main window, the main window will become hidden but
will remain monitoring the various configured video feeds.
When you click the maximize button, in the
upper right corner of the main window or right click the mouse button over the
video feeds, the program will show the video feeds in full screen mode. Simply press the ESC key or click right
mouse again and the main console view will be redisplayed.
When you click the close button, in the
upper right corner of the main window, the console view window will be closed
but the application will remain running.
The H264WebCam icon will be visible in the taskbar just to the left of
the system clock display.
Setting Up
Overview of Setup/Configuration
The four primary sections for
setup/configuration of H264 WebCam are:
Channel
Record
Motion
System
These options can be accessed by clicking
on the blue button next to the title of the desired category from the main
display window - shown below.
A detailed description, as well as the
various steps used throughout these four setup options, is covered in the
following sections.
Channel - Setup Options
By clicking the blue button next to the
Channel title (shown at the left) you will enter Channel setup dialog window.This dialog window will provide the options
to configure the video and audio sources for all of the available channels. There
can be channels from the local computer (directly connected cameras, TV Cards,
etc.) or from remotely accessible camera elsewhere on the network.
Our software support many network ip cameras,
you can select your ip camera in the following list:
If you need to change the default ip camera
setting, you can click "Detail" button which near this ip camera list :
You must check your ip camera 's setting,
and assure the rtsp setting is same as up. And assure the rtsp port is right!
If you need to reverse the pan tilt function, you can enable the "Pan Reverse"
item or "Tilt Reverse" item.
In Channel setting main window, the channel
list displays the current running settings or those saved following the last
setup. To change a channel's setting follow the steps listed below.
Step
1 - You must be sure to select a Total Number of
Channels that is greater than 1. If you want to change the channels number, you
need to select the number in list, then click "Change" button to
activate it!
Step
2 - Select the particular channel you want to change
from the list of available channels.

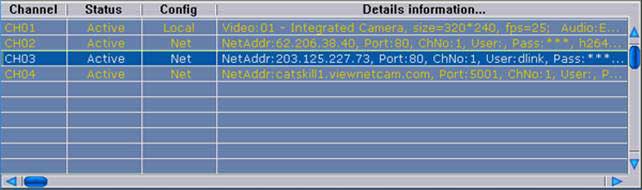

In the graphic shown below, the selected
channel is channel 3. This channel is setup for net, connecting a D-Link ip
camera DCS-920. You need to input ip address 203.125.227.73, and the web port
of this ip camera 80, fill user name to dlink, password to dlink . Select
D-Link ip camera in list, and select DCS-920 item.
Please Note - In this window
you can press the "Delete" key on your keyboard or the "Delete
Channel" button. Either of these actions will delete the selected channel
settings. When you press the "Spacebar" on your keyboard or click the
"Change Status" button it will change the selected channel's status
between active and inactive. When a channel's status is set to inactive, the
software will ignore it.
Step3 - Change the settings of one channel
The "Delete
Channel" button will delete a channel's settings and restore this channel to
null.
The "Change
Status" button will change this channel between an active and inactive status.
Local
If you select
the Local option the highlighted channel will be able to capture video from any
cameras (or other devices) directly connected to the local computer. Within the
Local section you can select the video source, size, frame-rate and audio
source. If you have TV card this is where the desired channel selection is
made.
Net
If you select
the Net option the highlighted channel will connect to a remote network cameras
or remote computer that is also running H264WebCam software. The network
address must be a dotted decimal IP Address such as 202.96.11.1 , or a domain
such as timhillone.dyndns.org. You also can set a pc name that can be resolved
through name services (such as DNS) on the local network.. Also you can select
"H264 User" and enter a user name such as "timhillone" or "Mike." However, you
must be sure that you have run our Exalted version at remote, and have host
this H264 user name "timhillone" or "Mike" already! This H264 User is designed
for people who use dial up to connect to the internet and which in turn causes
the IP Address to change frequently. If this H264 User should be valid for
remote user connections that are fixed/dedicated like a cable modem or even a
T1. Once you input remote user name and password to access the remote program
be sure to select the desired remote channel which you wish to monitor.
Step
4 - Save Changes
Click the
button to save the changes that have been
completed. All channel settings will be saved for all channels, until you make
additional changes and click the save button again. If you don't save and just click
the Exit button, the software will prompt you to return and perform a save. If
you don't want to save the changes your settings, you can select Exit and when
prompted to return and perform Save simply select Exit (again) and the software
will restore the settings to the state just prior to your entering this dialog
window.
button to save the changes that have been
completed. All channel settings will be saved for all channels, until you make
additional changes and click the save button again. If you don't save and just click
the Exit button, the software will prompt you to return and perform a save. If
you don't want to save the changes your settings, you can select Exit and when
prompted to return and perform Save simply select Exit (again) and the software
will restore the settings to the state just prior to your entering this dialog
window.
button can delete the settings of
selected channel !
button can change the status of selected
channel, active status or inactive status!
button can automatically search all ip
cameras in your local network! This button can lead you to the following search
dialog:
In this dialog, you can select the type of
ip cameras, or select "All ip cameras" in list, then click "Search" button, it
will automatically display all ip cameras in your local network! Display ip
camera type, MAC address, ip address or other information. Then you can right
click one ip camera in list, and directly add this ip camera to one channel! Of
course you need to set some other information such as user name and password to
login this ip camera.
Record - Setup Options
Click the
button to enter record setup dialog
window.
button to enter record setup dialog
window.This window will provide an entrance to setup
the video and audio encoder parameter for each available channel.
Step
1 - Select the channel.
Click the
button to select one desired channel. If
you select "All Channel" in list, your new settings will be copied to all
channels!
button to select one desired channel. If
you select "All Channel" in list, your new settings will be copied to all
channels!Step
2 - Select one record format in list, then change
video encode type, audio encode type, bit-rate, and some OSD information! Such
as channel title, date osd and time osd.
a) If you want to record one channel to MP4, MOV files, you can select
H264, XVID or Mpeg4 video encoder type along with AAC audio encoder.
b) If you want to record one channel to FLV, SWF files, you can select H264,
FLV1 video encoder type along with MP3 audio encoder.
c) If you want to record one channel to ASF files, you can select
MSMPEG4, WMV3 video encoder and MP3, WMA audio encoder.
d) If this channel will connect to an ip camera, our software will
directly get video stream and audio stream from it. But if it's encoder type
can not be compatible with the record type of this channel, our software will
re-encode video or audio to an appropriate format, this will cost more cpu
resource! AVI file format can hold many encoder, so you can select an
appropriate encoder to avoid re-encode video.
e) To avoid one record file is too long, you can select every 20
minutes to change new record file, or every 45 minutes to switch record file!
AVI, MP4, MOV file format need to be close exactly, otherwise all this file can
not be played normally!
f) For all channels, you can change the record format, such as AVI,
MP4, FLV etc, but you can not select video encoder and video bitrate for some
ip cameras, such as mpeg4 ip camera, H.264 ip cameras! Because our software
will directly save the raw video stream getting from the ip camera to record
files! Or our software will automatically select a right video encoder for your
record format.

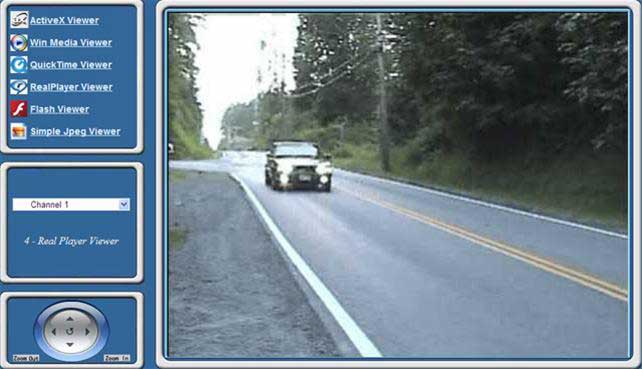

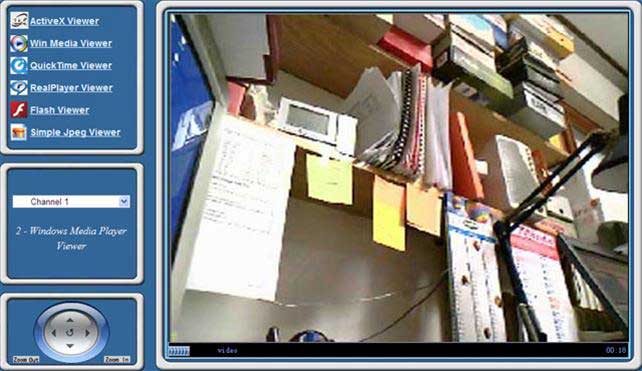

g) The channel record format will influence the remote viewer, such as "Win
Media Viewer" need ASF or WMV record format! "QuickTime Viewer" and "RealPlayer
Viewer" need MP4 or MOV record format! "Flash Viewer" need FLV or SWF record
format! The "ActiveX Viewer" and "Simple Jpeg Viewer" have no relation with the
channel record format, so it can view all channel video from remote!
Step
3 - Save Changes
Click the button to save the changes that have been
changed, all channel settings will be saved and take effect at once! If you
click "Exit" button directly, software will restore the old settings and don't
change anything!
button to save the changes that have been
changed, all channel settings will be saved and take effect at once! If you
click "Exit" button directly, software will restore the old settings and don't
change anything!
Our software can automatically delete the
oldest record file when disk is fully! So you can enable this item to
automatically delete, and you can set record file days, then our software will
automatically delete all the time-out record files! This parameter is a global
settings for all channels!
Motion - Setup Options
Click the
button to enter the motion detect setup
dialog window.
button to enter the motion detect setup
dialog window.This window will set up 3 function including
motion record, scheduled record and scheduled FTP jpeg function. You can setup
video motion detection settings, record durations and recording and motion
recording schedules each of the available channels. Also available through this
window is the configuration settings for the Email and FTP alerting options.
Please
Note - The "Set this Channel to Default" button
will set this channel to default parameter for motion recording, or scheduled
recording. Simply click this button, with the desired channel selected, and it will
becomes the channel to default settings. It is that easy!
Step
1 -Select the channel.
Click the desired
button to select the channel.
button to select the channel.Step
2 - Select the day/week settings
All day use this setting for every day.
Mon. use
this setting only in Monday.
Tues use this setting only in Tuesday.
Wed use this setting only in Wednesday.
Thurs use this setting only in
Thursday.
Fri use
this setting only in Friday.
Sat. use this setting only in Saturday.
Sun. use this setting only in Sunday.
Please Note:
a)
When you selected the "Scheduled
Recording" checkbox, the schedule record setting will be active for that
day. Otherwise it will be ignore for that day. If you selected scheduled
record, software will record according to the scheduled time you set.
b)
When you select the "Motion
Recording" checkbox
the motion
the motion recording setting will be active for that
day. Otherwise it will be ignore for that selected day.
Step
3 - Select the time-table.
There are two
time periods you can define. For example - set a workday from 8:00am to 11:59am
and 2:00pm to 6:00pm. This set the record file in two time segments. You need
to assure the ending time must > the beginning time! The 8pm->8am is
wrong setting!

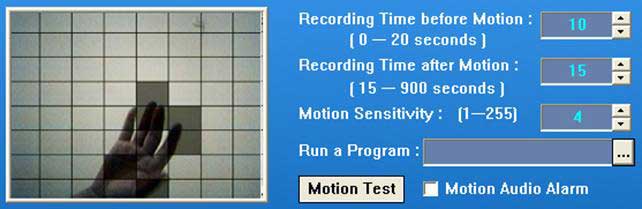

Step
4 - Set the motion detect parameter
The video can be
divided into a 64(8*8) grid style region.
You can select(unselect) each region 's status independently. A region
is set (or actively monitored) when the diamond icon
is displayed. The software will check
this region of the video for motion. You simply click the image directly to activate/deactivate
the status of each region.
is displayed. The software will check
this region of the video for motion. You simply click the image directly to activate/deactivate
the status of each region.a) The Recording Time after Motion is the duration of recording will
occur when activated. It is recommended the value be set between 15 and 900 seconds.
The Recording Time before Motion is the record time before checked video
moving, you can set 20 or 10 seconds more. If you don't need the pre-record
function, you can set this parameter to 0, then it will save more cpu resource
for encoding!
b) Motion sensitivity is the video motion grade used during detection.
If you set to 0, all video will be regarded as motion status. If you set to
255, then all video will not be regarded as no motion. The recommended value
should be set between 3 to 6.
c)
Motion audio alarm activates or
deactivates the systems internal speaker to 'Beep' informing you when motion is
detected. This setting can be checked/unchecked (on/off) without impacting the
actual recording.
d)
The button "Motion Test"
is used to test the video motion detection settings. It allows you to test the motion
sensitivity value's effectiveness in your particular environment.
e)
The "Run a Program" item means
you can select a application program in disk, our software will automatically
run this program when video start moving.
Step
5 - Save changes
Click the
button to the changes that have been
completed. All channel settings will be saved for all channels, until you make
additional changes and click the save button again. If you don't want to save
the changes your settings, you can select Exit button, then software will
restore the settings to the state just prior to your entering this dialog
window.
button to the changes that have been
completed. All channel settings will be saved for all channels, until you make
additional changes and click the save button again. If you don't want to save
the changes your settings, you can select Exit button, then software will
restore the settings to the state just prior to your entering this dialog
window.

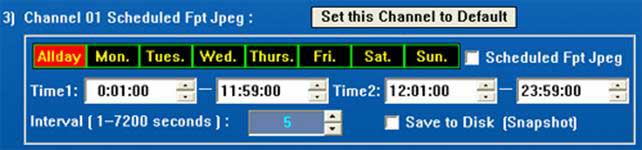

The scheduled FTP jpeg function is for
scheduled ftp uploading, so it is not related to video motion function! If you
have not set ftp parameter and enabled "Save to Disk" item, our software will
scheduled snapshot a jpeg picture and save it to disk for you! You can select
automatically ftp upload a jpeg picture to your website every 5 seconds or
others. If you enabled "Save to Disk" item, our software will save these jpeg
picture to snapshot directory after it ftp uploading.
System - Setup Options
Click the
button to enter the system setup dialog.
button to enter the system setup dialog.This dialog will enable access to set up the
various system parameters including user name and password management. You can
also set record disk partition, DirectDraw show type and the H264 User Name.
This dialog's title will show the current
record path. (For example: D:\TimHO_Rec).
a)
Login User - All users are
listed in the User Information list which displays user name and password. You
can input a user name and password and the channel(s) that can opened from a
remote connection. To add a users click the "Add User" button to create a new
user and simply set the appropriate settings for that user. To change a user's
settings click that user from the list and change the desired parameters. Be sure to click the "Save User" button
after making the changes after each user to insure the changes will be
maintained. To remove a user first click the user from list and then click the
"Delete User" button and they will be removed. You can enable or disable one
user to view and PTZ control this channel from remote!
b)
Record Drive - This interface
will show all hard disk partitions, USB driver and mapped network driver in the
computer. You can set a drive to record or not. The program will automatically
select the drive to be used and able to receive the recording files. If this
drive is full (no space) the program will select another available drive to record.
But you need to notice that this software will not delete the oldest record
files from network driver! We know the record speed of USB driver is slow than
hard driver, so you must assure the recording speed is enough for you. Try and
test recording on hard driver at first.
c)
Program Start Settings - You
can set some start parameters when software begin to run every time! (1)If you
need to login when software starting or exiting, you can enable "Start Need
Login" item. (2)If you need to login when software restore from tray, you can
enable "Tray Need Login" item. (3)You can set the default channels numbers
window to display when software starting, such as displaying 1 channel, 2
channels, 4 channels etc. (4)You can set automatically full screen when
software starting, or hide to tray when software starting. (5)Our software can
support multi-monitor displaying function, so you can moving our software from
on monitor to another monitor! And can select which monitor to display when
software starting. But the default mode "PC have no Multi-Monitor" can not
support multi-monitor, so you need to change this settings at first if you need
this function! (6)You can change our software GUI size to your needs! Such as
1024*600, 1280*768, 1280*1024, 1920*1080 etc. So if you have wide-screen
monitor, or netbook, you can change this parameter to fit your needs!
d)
Record and Snapshot Folder Name
- You can input a name, our software will automatically create a directory
using this name to save record files, snapshot jpeg pictures! The default
folder name is TimHO_Rec, you can change this name to yours! But you 'd better
to change this name often, because it will affect automatically delete the
oldest files function! The snapshot quality item will set the quality of jpeg
picture, the minimum quality is 1 and 12 is the maximum. The actual maximum
quality may also be limited by the camera being used.
e)
PIP position and automatically
switch next page - You can enable "Display Channel FPS" item to display frames
per second for each channel. And you can select a position for PIP display, now
our software have 4 position to select, such as R-B is right-bottom corner of
the window! If you need to automatically switch to next displaying page after
several seconds, you can set "Display Next Page Every" item to 5 seconds, or 10
seconds etc. Our software will automatically display next channel video every
few seconds! This function is also active for 2, 3, 4, 6, 9, 12, 16, 20, 25, 30
channels displaying window.
f)
DirectDraw Method - When there
are problems displaying the video feed you may need to change these settings.
Due to the many
kinds of display cards available it is possible your specific display card doesn't
support overlay or yuy2 DirectDraw methods. Please note that changes to these settings
will note take effect until you restart the software.
g)
Server Port - Our software have
3 server embedded in it. (1) One is web server, the default port of web server
is 80, but you can change this port to others, such as 800, and can set this
web server need to login. (2) H264 server is for ActiveX viewer and H264WebCam
connecting, the default port is 17518.
(3) Stream media server is for RTSP protocol, so you can use Quicktime
player or Realplayer, VLC player to view the video of our software! The default
port is 558, so rtsp://xx.xx.xx.xx:558/live.sdp?ch=1 url can view channel 1
video.
h)
Dyndns Domain setting - You can
use this function in Trial version, Deluxe version or Exalted version! Please
apply a dyndns domain from http://www.dyndns.com
at first, then you will get a dyndns user name, password and dyndns domain!
Then input these information to below, our software can host this domain for
you! Then you can use IE browser to visit this domain from internet! But you
also need to map tcp port 80, 558, 17518 on your router for your PC which run
our Deluxe version software..
i)
H264 User setting
After you purchase
H264WebCam Exalted version, you can get a registration code. Once you input this code into the
startup page, your software will automatically update to the full Exalted version,
at which point the H264 User will be active!
To use the
H264User first, you must input a name such as "Mike" into the settings (shown
above) replacing the "TIMHILLONE" , then click the "Check" button. If this H264 User has not been
previously registered you can click the "Create" button to apply the setting.
At that point the H264 User Name "Mike" belongs to you. When you start this
program every time, this page will show "Mike" 's status with a "V" indicating
this H264User is OK. A "X"
means this H264User verification has failed. A "?" means the status cannot be
determined. This can occur when the
system is not connected to the network.
When you have a
valid H264 User configured you can tell others and they can access the
monitoring system using the H264User name through the internet instead of an IP
address.
Email Alert and Ftp Alert - Set-up Options
Click the
button in the motion setting up section
to enter this interface.
button in the motion setting up section
to enter this interface.
You can send an email alert when video
motion is detected as well as ftp upload a jpeg picture to your ftp site. We
recommend using the Test Email and Test FTP buttons to assure all the setting you
set is ok! SSL item is for some email address need SSL transferring, such as
gmail.com.
Video Broadcast on Internet
Our software have six method to broadcast
your camera video on internet! If you click button "Broadcast on internet"
on main interface, you can view the
following dialog:
on main interface, you can view the
following dialog:
You can view the internet ip address which
make your pc to reach internet, select your wanted network to broadcast, and
click button: ActiveX viewer Broadcast, Win Player viewer Broadcast, Quick Time
Viewer Broadcast, Real Play Viewer Broadcast, Flash viewer Broadcast etc, you
can get some files, then copy these file to your website, and add a link to
this html web page. If someone click this link on your website, he can view
your camera video online! Assure your pc can be reached from internet at first,
so mapping tcp port 80, 558, 17518 is needed!
If your H264 WebCam 's version is Trial
version, Pro version, Deluxe version or Exalted version, our software embedded
"Stream Media Server" in it! So you can use many stream player to view our
software 's real video stream. If you open Quicktime player, or Realplayer from
remote, and open RTSP stream : rtsp://xx.xx.xx.xx:554/live.sdp, you can viewed
our software 's channel 1 's video, same as the channel 2 :
rtsp://xx.xx.xx.xx:554/live.sdp?ch=2 ... This can be protected by user name and
password.
If your H264 WebCam 's version is Trial
version, Pro version, Deluxe version or Exalted version, our software embedded
"Web Server" in it! So you can use IE browser, Firefox or other internet
browser to open our software from remote, you can select ActiveX Viewer,
Quicktime Viewer, Realplayer Viewer, Flash Viewer, Jpeg Viewer to view our real-time
video and audio. If you use IE browser to open : http://xx.xx.xx.xx:80/video.jpg, you
can view the picture of our channel 1, same as the channel 2 : http://xx.xx.xx.xx:80/video.jpg?ch=2
... This can be protected by user name and password.
If your internet ip address have changed,
these old broadcasting webpage will be invalid. So you need to re-create these
broadcasting webpage again. If you use our dyndns domain hosting function, our
software can use this dyndns domain to broadcast.
Video Color Adjust
You can use this interface to adjust the video
color settings - including brightness, contrast, saturation, hue, or simply
click the default button to restore the camera color to default values. Any changes
you make will take effect immediately! The software automatically saves your
changes so they will be active the next time you use the application.
Camera PTZ Control
Now our software can PTZ control many ip
cameras! You can control your camera to pan, tilt and zoom moving, and you can control
your camera to move to home position! And zoom in, zoom out function! But all
these function need your network cameras to support!
Our software can get the preset list from
your ip cameras, so you can save a position to your preset list, and also can
call this position by clicking. But this function also need your cameras to support!
You can set our software to automatically
call some camera position every 10 seconds! You can set the cycles of total numbers,
you can set the call gap parameter, and can set the call camera position list,
select some camera positions which you wanted to monitor.
Camera Digital PTZ Function.
You can move the mouse to one channel video
at first, then use mouse wheel to zoom in video or zoom out video! And you can
use mouse left button to drag video to left, right, or up, down! This function
only act on video displaying, don't act on video recording! When you click
multi-channel video display button, all channels will lose digital PTZ effect,
and restore video displaying to origin !
Keyboard Shortcuts.
There are 7 keyboard shortcuts in
H264WebCam software :
1) PageUp -- Switch to the prior displaying
channel video page, same as the button PageUp.
2) PageDown -- Switch to the next
displaying channel video page, same as the button PageDown.
3) Tab -- Switch the channel video numbers
to display, same as the multi-channel video display buttons!
4) Left -- Control the PTZ camera pan to
left.
5) Right -- Control the PTZ camera pan to
right.
6) Up -- Control the PTZ camera tilt to up.
7) Down -- Control the PTZ camera tilt to
down.
Manual Record
When you click the
button the channel 01's manual record
will start. This button will blink between the colors
and
indicating manual recording has taken
effect!
button the channel 01's manual record
will start. This button will blink between the colors and indicating manual recording has taken
effect!
In this above image, channel 01 is in video
motion alarm record mode and channel 02 is in schedule record mode. The software will first show the motion
record and then show the schedule record and lastly show manual record. If these
indicators are not blinking the channel is not recording.
Audio
The software will also listen to the
channel which you have selected. When you click video in the video window the
focused channel will switch and the new channel's window will show a red
borderline, see below.
Mute Audio
When you click the
button you can mute the audio out. The
button will show
when
muted. Simply click again to un-mute. Our software will save this status of
audio mute !
button you can mute the audio out. The
button will show when
muted. Simply click again to un-mute. Our software will save this status of
audio mute !Play Record Files
When you click the
button, you can play the record files!
This button will lead you to open the current record directory. Because our
record file is standard AVI, MP4, MOV, FLV, ASF files, so you can use many
media player to play it. Such as Windows Media Player, Quicktime Player,
Realplayer, VLC player etc.
button, you can play the record files!
This button will lead you to open the current record directory. Because our
record file is standard AVI, MP4, MOV, FLV, ASF files, so you can use many
media player to play it. Such as Windows Media Player, Quicktime Player,
Realplayer, VLC player etc.Switch Video Show
H264WebCam allows you to change the
interactive viewing modes between single feeds to various multiple feed modes. You
can select 4:3 mode
displaying or 16:9 mode
displaying at first ! Then select 1, 2,
4, 6, 9, 16, 25, 36 channels window to display or 1, 3, 6, 9, 12, 15, 20, 30
channels window to display!
displaying or 16:9 mode displaying at first ! Then select 1, 2,
4, 6, 9, 16, 25, 36 channels window to display or 1, 3, 6, 9, 12, 15, 20, 30
channels window to display!When you select 4:3 mode, the following
button will show :
Click
button will show a one channel feed in
the window.
button will show a one channel feed in
the window.Click
button will show two channel feeds in the
window with one as PIP(picture in picture) show.
button will show two channel feeds in the
window with one as PIP(picture in picture) show.Click
button will show four channel feeds in
the window.
button will show four channel feeds in
the window.Click
button will show six channel feeds in the
window with one video is larger than the others.
button will show six channel feeds in the
window with one video is larger than the others.Click
button will show nine channel feeds in
the window.
button will show nine channel feeds in
the window.Click
button will show sixteen channel feeds in
the window.
button will show sixteen channel feeds in
the window.When you select 16:9 mode, the following
button will show :
Click
button will show a one channel feed in
the window.
button will show a one channel feed in
the window.Click
button will show three channel feeds in
the window.
button will show three channel feeds in
the window.Click
button will show six channel feeds in the
window.
button will show six channel feeds in the
window.Click
button will show nine channel feeds in the
window.
button will show nine channel feeds in the
window.Click
button will show twelve channel feeds in
the window.
button will show twelve channel feeds in
the window.Click
button will show fifteen channel feeds in
the window.
button will show fifteen channel feeds in
the window.Click
button will show twenty channel feeds in
the window.
button will show twenty channel feeds in
the window.Click
button will show thirty channel feeds in
the window.
button will show thirty channel feeds in
the window.Click
button will show the next page of video
feeds.
button will show the next page of video
feeds. Click
button will show previous page of video
feeds.
button will show previous page of video
feeds.Snapshot Jpeg file
Click the
button to take a snapshot of the
currently selected channel's video feed as a jpeg file. This file is saved to
the current record directory, and subdirectory: Snapshot. You can click "Play" button to go to
this directory directly !
button to take a snapshot of the
currently selected channel's video feed as a jpeg file. This file is saved to
the current record directory, and subdirectory: Snapshot. You can click "Play" button to go to
this directory directly !Help File
Click the
button on the main interface, you can
open the help document of this software! So you can get the detailed step of
each operation of H264 WebCam.
button on the main interface, you can
open the help document of this software! So you can get the detailed step of
each operation of H264 WebCam.Import Config File and Export Config File
Click the
button on the main interface, you can
view the following dialog :
button on the main interface, you can
view the following dialog :
Button "Export Current Settings To File"
can save your current settings of H264 WebCam to a file, so you can upgrade our
software to newest, then click "Import Settings From File" button can import
your config file to new version.
Log File
Click the
button on main interface to access the
log file, sample shown below.
button on main interface to access the
log file, sample shown below.
Adjust TV channel
Click the
button on main interface to access the TV
channel adjustment interface.
button on main interface to access the TV
channel adjustment interface.Exit - Shutting down H264 WebCam
When you click the
button the software will completely
shutdown and terminate all monitoring and recording operations.
button the software will completely
shutdown and terminate all monitoring and recording operations.4 Web
Browser (B/S)
Web Browser (Such as IE6.0, Firefox, Safari, Chrome
etc.)
Because H264 WebCam has an embedded web
server it is possible use an internet browser, such as IE, to remotely view
your webcam! If you run this software in your home (and you know the IP address
of your home computer) you can open IE browser from another computer, say in
your office, enter the IP address in dotted decimal format (such as http://56.101.32.68). When the connection is successful you
will see an interface similar to the one shown below:
You can select a viewer to display video
from these six viewers.
1. ActiveX Viewer.
This viewer can only be used in IE browser! Because it is the Microsoft
standard.
If you click "Setup" button, you can view
the following setup dialog! You can select how many channels do you need to
activate, because some pc have low cpu resource, so it can not view 16 channels
at the same time! And you can change port and display mode in this dialog! Our
default H264 Server port is 17518, but if you change this port in H264 WebCam
system setup dialog, you need change this port in this setup dialog also!
2. Windows Media Player Viewer :
3. QuickTime Player Viewer :
4. RealPlayer Viewer :
5. Flash Player Viewer :
6. Simple Jpeg Viewer :
Enter a valid user name and password to log
into the remote software. The default is "admin", "123456" . After you successfully login you will be able
to view remote video feeds. While connected remotely you can also click the
"Setup" button and make changes to the monitoring systems display methods or
channel setups!
5 FAQS
Please visit : http://www.h264soft.com/faqs.html
.
Copyright © 2006-2015 Timhillone Software Co.,Ltd.
